Output

The output is used to create graphs that can be viewed when executing the simulation on NetLogo.

Fig. 1 shows the object related to the output that can be managed on the ABStractme Tool.

Output.
Fig. 1. Output.

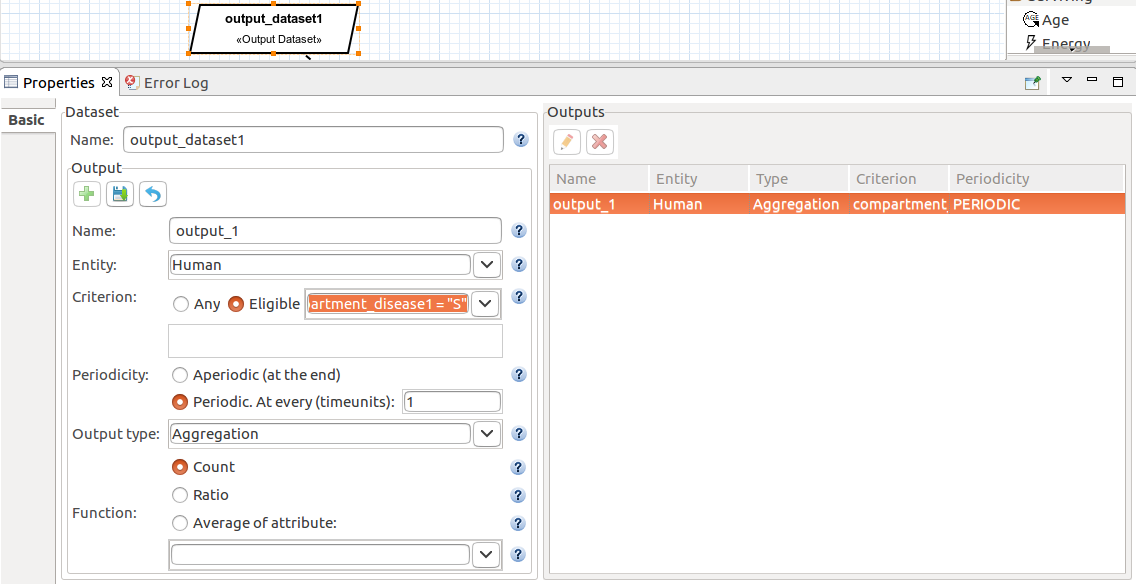

Fig. 2 shows how to set a graph in the output properties view.

Output graph.
Fig. 2. Output graph.

External

External is used to import already existing agents or capabilities, they are useful when the simulation needs certain elements that are not supported by the tool yet.

Fig. 3 shows the objects related to the external entries that can be managed on the ABStractme Tool.

External.
Fig. 3. External.

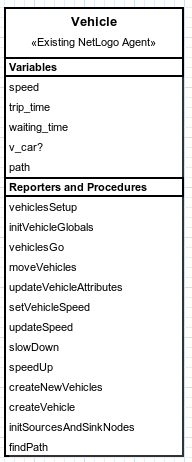

Fig. 4 shows the box that represents an external agent imported to the diagram.

External agent.
Fig. 4. External agent.

Fig. 5 shows the box that represents an external capability imported to the diagram.

External capability.
Fig. 5. External capability.
