Biomechanical Joint Model
Author: Anderson Maciel

COME_Patient Class Reference

#include <comepatient.h>

Inherits COME.

Inheritance diagram for COME_Patient:

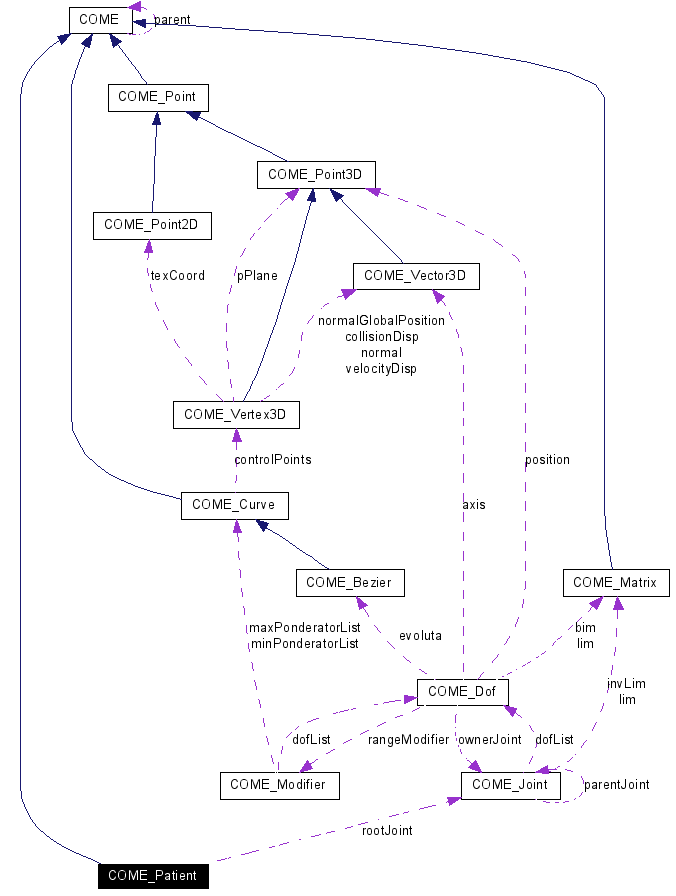

[legend]Collaboration diagram for COME_Patient:

[legend]List of all members.


Public Member Functions
	COME_Patient ()
	COME_Patient (const COME_Patient &patientN)
	COME_Patient (COME_Patient *patientN)
	COME_Patient (string nameN, short ageN, bool genderN, double weightN, double heightN, COME_Joint root, list< COME_BioStructure > organListN, COME *scene)
virtual	~COME_Patient ()
void	setName (string nameN)
void	setAge (short ageN)
void	setGender (bool genderN)
void	setWeight (double weightN)
void	setHeight (double heightN)
void	setOrganList (list< COME_BioStructure * > &listN)
void	setRootJoint (COME_Joint *rootJointN)
string	getName () const
short	getAge () const
bool	getGender () const
double	getWeight () const
double	getHeight () const
list< COME_BioStructure * >	getOrganList () const
const list< COME_BioStructure * > *	getPtOrganList () const
COME_BioStructure *	getOrgan (string desc) const
COME_BioStructure *	getOrgan (int index) const
COME_BioStructure *	getSelected () const
COME_Joint *	getRootJoint ()
COME_Joint *	getJointByName (string target)
COME_Joint *	searchJoint (COME_Joint *currJoint, string target)
void	addOrgan (COME_BioStructure *organN)
bool	update (double timestep, double simClock)
void	getEnvelop (COME_Point3D &mins, COME_Point3D &maxs) const
void	unselectAll ()
void	updateSkin ()
Protected Attributes
string	name
short	age
bool	gender
double	weight
double	height
list< COME_BioStructure * >	organList
COME_Joint *	rootJoint

Detailed Description

This class describes a real person in the framework, particularly a patient.

Definition at line 50 of file comepatient.h.

Constructor & Destructor Documentation

COME_Patient::COME_Patient ( )

Construction/Destruction
Definition at line 46 of file comepatient.cpp.
References age, gender, MALE, name, COME::parent, and rootJoint.

COME_Patient::COME_Patient ( const COME_Patient & patientN )

Definition at line 55 of file comepatient.cpp.
References age, gender, getAge(), getGender(), getHeight(), getName(), getOrganList(), COME::getParent(), getWeight(), height, name, organList, COME::parent, and weight.
Here is the call graph for this function:

COME_Patient::COME_Patient ( COME_Patient * patientN )

Definition at line 70 of file comepatient.cpp.
References age, gender, height, name, organList, COME::parent, rootJoint, and weight.

COME_Patient::COME_Patient ( string nameN,

short ageN,

bool genderN,

double weightN,

double heightN,

COME_Joint * root,

list< COME_BioStructure * > organListN,

COME * scene

)

Definition at line 82 of file comepatient.cpp.
References age, gender, height, name, organList, COME::parent, rootJoint, COME::setParent(), and weight.
Here is the call graph for this function:

COME_Patient::~COME_Patient ( ) [virtual]

Definition at line 99 of file comepatient.cpp.

Member Function Documentation

void COME_Patient::addOrgan ( COME_BioStructure * organN )

Add the given organ to the list of organs of this patient.
Definition at line 265 of file comepatient.cpp.
References organList.
Referenced by COME_Scenario::addOrganFromFile().

short COME_Patient::getAge ( ) const

Definition at line 161 of file comepatient.cpp.
References age.
Referenced by COME_Patient().

void COME_Patient::getEnvelop ( COME_Point3D & mins,

COME_Point3D & maxs

) const

This method inspects the envelops of all organs within the patient and sets the parameters mins and maxs to the minimum and maximum corners of the rectangular patient envelop.
Definition at line 299 of file comepatient.cpp.
References COME_Point3D::getX(), COME_Point3D::getY(), COME_Point3D::getZ(), organList, COME_Point3D::setX(), COME_Point3D::setY(), and COME_Point3D::setZ().

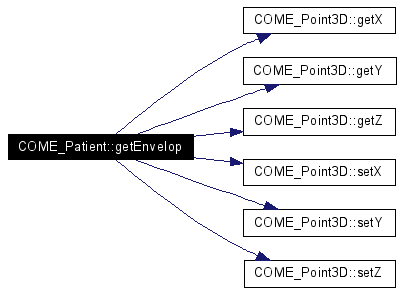

Here is the call graph for this function:

bool COME_Patient::getGender ( ) const

Definition at line 167 of file comepatient.cpp.
References gender.
Referenced by COME_Patient().

double COME_Patient::getHeight ( ) const

Definition at line 179 of file comepatient.cpp.
References height.
Referenced by COME_Patient().

COME_Joint * COME_Patient::getJointByName ( string target )

Definition at line 242 of file comepatient.cpp.
References rootJoint, and searchJoint().
Referenced by COME_Scenario::simulate().
Here is the call graph for this function:

string COME_Patient::getName ( ) const

Getting
Definition at line 155 of file comepatient.cpp.
References name.
Referenced by COME_Patient().

COME_BioStructure * COME_Patient::getOrgan ( int index ) const

Definition at line 209 of file comepatient.cpp.
References organList.

COME_BioStructure * COME_Patient::getOrgan ( string desc ) const

Definition at line 197 of file comepatient.cpp.
References organList.
Referenced by COME_Mechatester::clickedStartSim(), COME_Mechatester::COME_Mechatester(), COME_Scenario::initializeAllHashs(), and COME_Mechatester::updateClampIntersections().

list< COME_BioStructure * > COME_Patient::getOrganList ( ) const

Definition at line 185 of file comepatient.cpp.
References organList.
Referenced by COME_Patient().

const list< COME_BioStructure * > * COME_Patient::getPtOrganList ( ) const

Definition at line 191 of file comepatient.cpp.
References organList.
Referenced by COME_Mechatester::clickedCheck(), COME_Mechatester::clickedReset(), COME_Mechatester::clickedStartSim(), COME_Collide::detectContacts(), COME_Collide::detectContactsDisplacement(), COME_DiscretizerQGLWidget::draw(), COME_ModelJoint::fileLoad_scene(), COME_Mechatester::fileOpen(), COME_Discretizer::fileOpen(), COME_Scenario::initializeAllHashs(), COME_Collide::initializeProximityStructure(), COME_ModelJointQGLWidget::loadTextures(), COME_Xml::saveMaterials(), COME_Xml::saveMoleculeOrgan(), COME_Xml::saveOrgansAnimation(), COME_Collide::sphericalSlidingResponse(), COME_Collide::treatCollisions(), COME_Mechatester::updateClampIntersections(), COME_Mechatester::updateEquation(), and COME_Discretizer::updateSampling().

COME_Joint * COME_Patient::getRootJoint ( )

Definition at line 235 of file comepatient.cpp.
References rootJoint.

COME_BioStructure * COME_Patient::getSelected ( ) const

Definition at line 223 of file comepatient.cpp.
References organList.
Referenced by COME_Mechatester::clickedAssociate(), COME_ModelJoint::rotateSelected(), COME_Mechatester::rotateSelected(), COME_ModelJoint::scaleSelected(), COME_Mechatester::scaleSelected(), COME_ModelJoint::sliderNominalReleased(), COME_ModelJoint::translateSelected(), and COME_Mechatester::translateSelected().

double COME_Patient::getWeight ( ) const

Definition at line 173 of file comepatient.cpp.
References weight.
Referenced by COME_Patient().

COME_Joint * COME_Patient::searchJoint ( COME_Joint * currJoint,

string target

)

Search the joints tree by the joint named target. Calls itself recursively to walk on the tree.
Definition at line 251 of file comepatient.cpp.
References COME_Joint::getChildListPt(), and COME_Joint::getDescription().
Referenced by getJointByName().
Here is the call graph for this function:

void COME_Patient::setAge ( short ageN )

Definition at line 115 of file comepatient.cpp.
References age.

void COME_Patient::setGender ( bool genderN )

Definition at line 121 of file comepatient.cpp.
References gender.

void COME_Patient::setHeight ( double heightN )

Definition at line 133 of file comepatient.cpp.
References height.

void COME_Patient::setName ( string nameN )

Setting
Definition at line 109 of file comepatient.cpp.
References name.

void COME_Patient::setOrganList ( list< COME_BioStructure * > & listN )

Definition at line 139 of file comepatient.cpp.
References organList.

void COME_Patient::setRootJoint ( COME_Joint * rootJointN )

Definition at line 145 of file comepatient.cpp.
References rootJoint.

void COME_Patient::setWeight ( double weightN )

Definition at line 127 of file comepatient.cpp.
References weight.

void COME_Patient::unselectAll ( )

Definition at line 333 of file comepatient.cpp.
References organList.
Referenced by COME_ModelJointQGLWidget::postSelection(), and COME_MechatestQGLWidget::postSelection().

bool COME_Patient::update ( double timestep,

double simClock

)

Update this patient's positions accordingly to physics after timestep seconds.
Definition at line 275 of file comepatient.cpp.
References organList.

void COME_Patient::updateSkin ( )

Update all the organs' skins
Definition at line 345 of file comepatient.cpp.
References organList.

Member Data Documentation

short COME_Patient::age [protected]

Definition at line 54 of file comepatient.h.
Referenced by COME_Patient(), getAge(), and setAge().

bool COME_Patient::gender [protected]

Definition at line 55 of file comepatient.h.
Referenced by COME_Patient(), getGender(), and setGender().

double COME_Patient::height [protected]

Definition at line 57 of file comepatient.h.
Referenced by COME_Patient(), getHeight(), and setHeight().

string COME_Patient::name [protected]

Definition at line 53 of file comepatient.h.
Referenced by COME_Patient(), getName(), and setName().

list<COME_BioStructure*> COME_Patient::organList [protected]

Definition at line 58 of file comepatient.h.
Referenced by addOrgan(), COME_Patient(), getEnvelop(), getOrgan(), getOrganList(), getPtOrganList(), getSelected(), setOrganList(), unselectAll(), update(), and updateSkin().

COME_Joint* COME_Patient::rootJoint [protected]

Definition at line 59 of file comepatient.h.
Referenced by COME_Patient(), getJointByName(), getRootJoint(), and setRootJoint().

double COME_Patient::weight [protected]

Definition at line 56 of file comepatient.h.
Referenced by COME_Patient(), getWeight(), and setWeight().

The documentation for this class was generated from the following files:

Generated on Thu Dec 1 10:14:26 2005 for COME - Biomechanical Joint Model by

1.4.5
